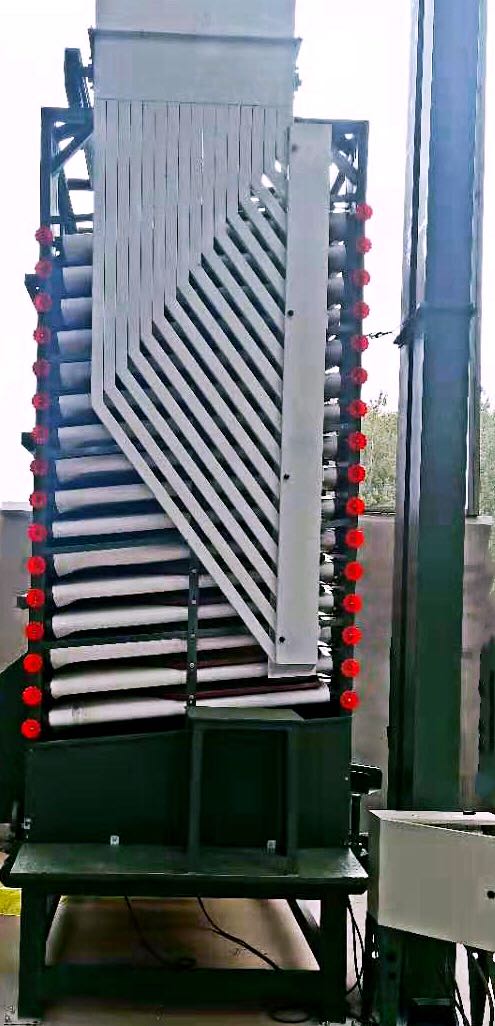

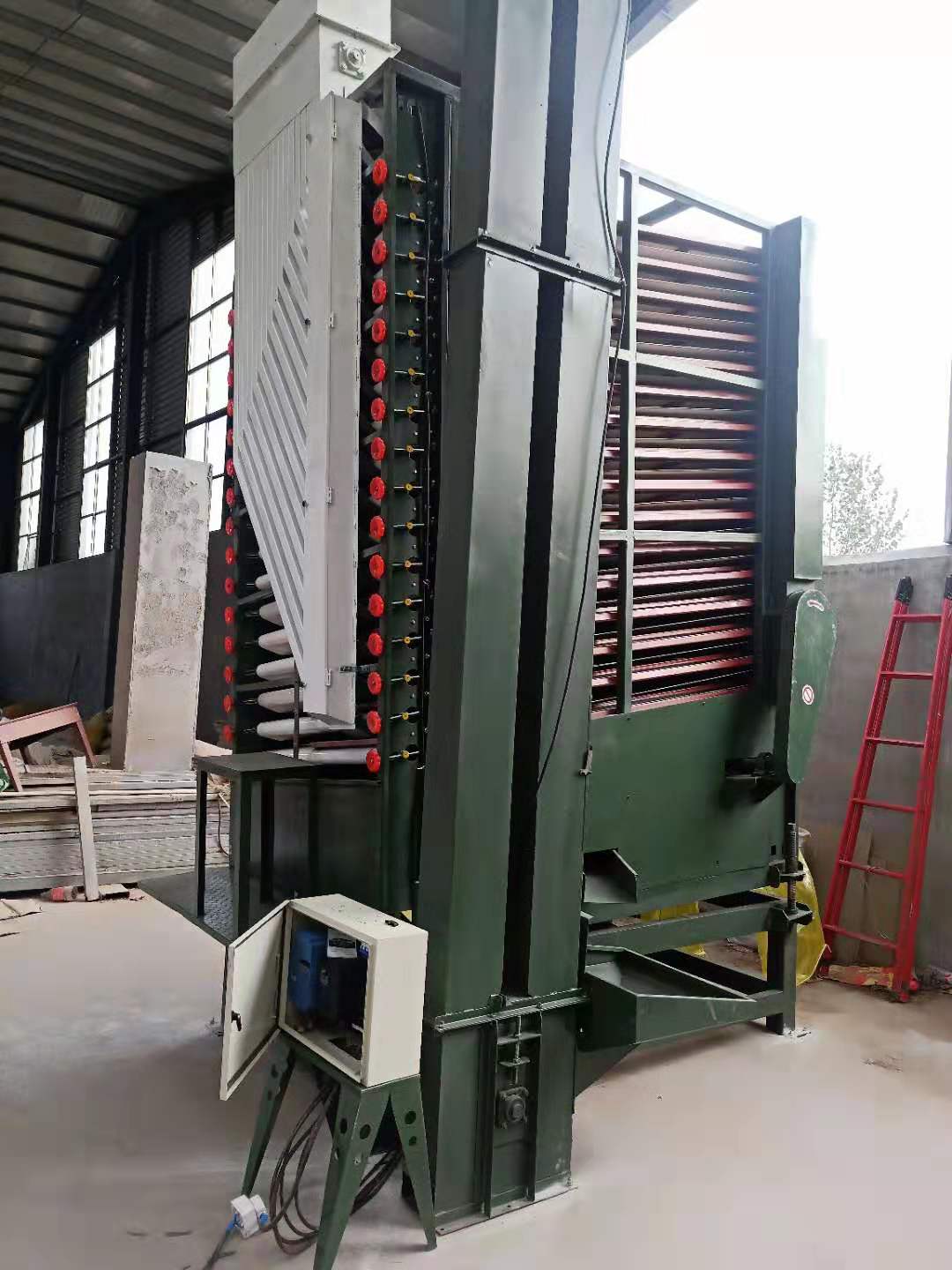

帶式大豆清選機 Belt type soybean cleaning machine

用途：能去除豆種中的土塊
、石塊、半豆、一部分病蟲豆和皺皮豆。

優點：傳動平穩可靠，噪聲低，高效穩定，工作中不漏糧。

選料帶寬1200mm，周長4500mm，帶選機帶層數10層
，喂料采用自動給料，電機是四季免加油型減速電機
，功率5kW，喂wei入ru量liang和he帶dai選xuan機ji帶dai數shu均jun采cai用yong變bian頻pin器qi調tiao節jie。另ling又you安an裝zhuang一yi套tao回hui流liu重zhong選xuan設she備bei，以yi確que保bao質zhi量liang。帶dai選xuan機ji的de帶dai不bu是shi傳chuan統tong的de網wang帶dai，而er是shi耐nai磨mo耐nai用yong的de膠jiao帶dai，正zheng好hao適shi合he黃huang淮huai地di區qu的de大da豆dou不bu規gui格ge豆dou的de清qing選xuan。另ling外wai，帶dai選xuan機ji又you添tian加jia一yi層ceng底di座zuo以yi便bian調tiao整zheng角jiao度du。

Usage: it can remove the soil, stone, half beans, some diseased beans and wrinkled beans.

Advantages: stable and reliable transmission, low noise, high efficiency and stability, no grain leakage in work.

The belt width is 1200mm, the perimeter is 4500mm, and the belt number of the belt separator is 10 layers. The feeding adopts automatic feeding. The motor is the four seasons oil free deceleration motor with the power of 5kW. The feeding amount and the belt number of the belt separator are adjusted by frequency converter. Another set of reflux gravity separation equipment is installed to ensure the quality. The belt with separator is not a traditional mesh belt, but a wear-resistant and durable belt, which is just suitable for the cleaning of non-standard soybean in Huanghuai region. In addition, a layer of base is added to the belt selector to adjust the angle.
